Set up the UAT environment

This page covers what you need before you start testing, how to sign in to the UAT environment, and where to find each testing area in the Mock Data Recipient.

Prerequisites

Complete the following tasks before you start testing.

Task	Description	Provided by
User configuration	A list of team members who need access to the UAT environment, with their email addresses.	Data Holder
User credentials	Access credentials for each team member in the UAT environment.	Fiskil
Test data (Fiskil Data Store customers only)	Customer IDs for each test persona, with an email address set that your testers can receive. UAT data may not have emails configured for authorised testers. See Test personas.	Data Holder

Fiskil emails sign-in details to each team member once their access is set up.

Access the UAT environment

Open the UAT portal

Go to cdr-ecosystem.fiskil.com.

Enter the email address and password from your access email, then select Sign in.

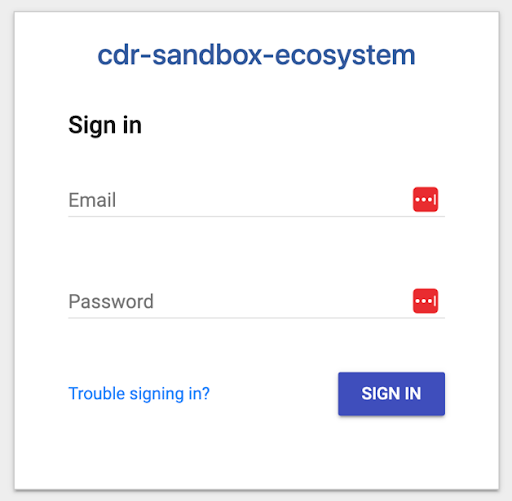

Sign-in form titled cdr-sandbox-ecosystem with Email and Password fields and a Sign in button — The UAT environment sign-in screen

After you sign in, the Mock Data Recipient home page opens with the navigation menu on the left.

If you have trouble signing in, or you want to add more users, raise a ticket in the Fiskil Console or email cdr-tech-support@fiskil.com.

Walk through the environment

Watch this introductory video before you begin.

You use these areas of the sidebar for testing:

Sidebar area	Section	Used for
PAR	Consent	Starting a consent with a Pushed Authorisation Request (PAR). See Phase 1.
Consents	Consent	Viewing the consents (CDR arrangements) you have created.
Common	Consumer Data Sharing	Calling the Common APIs, such as customer details.
Banking	Consumer Data Sharing	Calling the Banking APIs. See Phase 2.
Energy	Consumer Data Sharing	Calling the Energy APIs. See Phase 2.

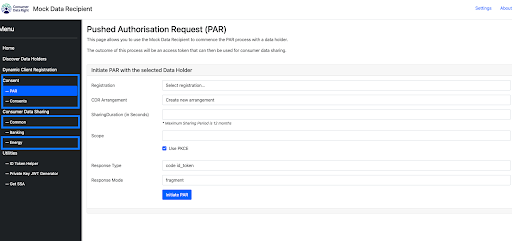

Mock Data Recipient showing the Pushed Authorisation Request page, with the PAR, Consents, Common, Banking and Energy sidebar items highlighted — The Mock Data Recipient sidebar, with the testing areas highlighted

Do not edit, delete, or remove any of the registrations listed in the Dynamic Client Registration section.

The Banking, Energy, and Common pages list every data sharing endpoint available to the Mock Data Recipient, grouped by data cluster. You select an endpoint, choose a CDR arrangement, and send the request.

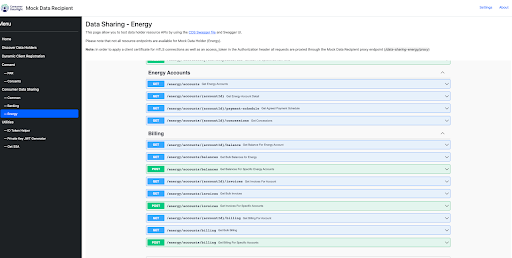

Data Sharing - Energy page listing Energy Accounts and Billing endpoints such as GET /energy/accounts/{accountId}/balance and POST /energy/accounts/billing — The Energy data sharing page, with endpoints grouped by cluster

The Plans data set relies on AER data, and AEMO data (service points, usage, and DER) is not yet available in the UAT environment.
